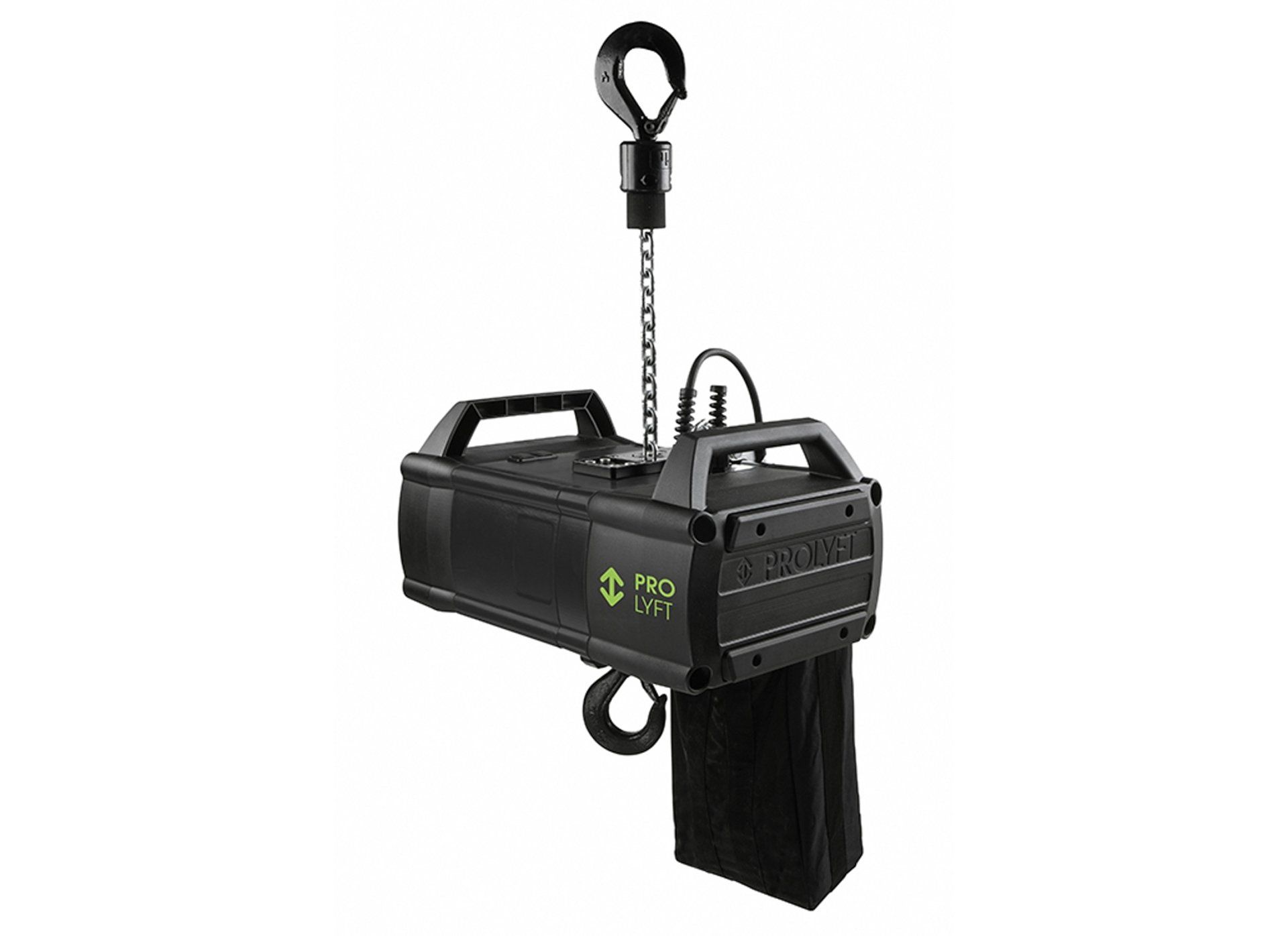

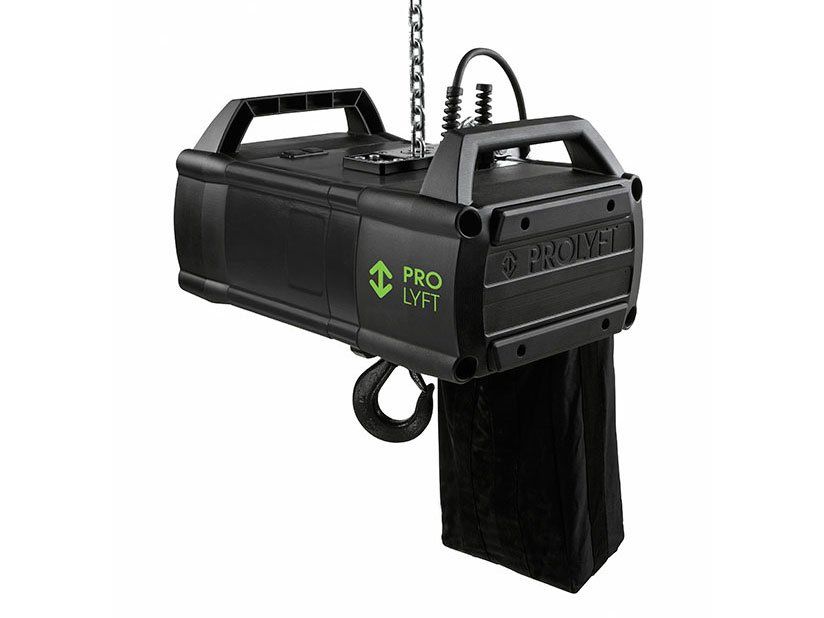

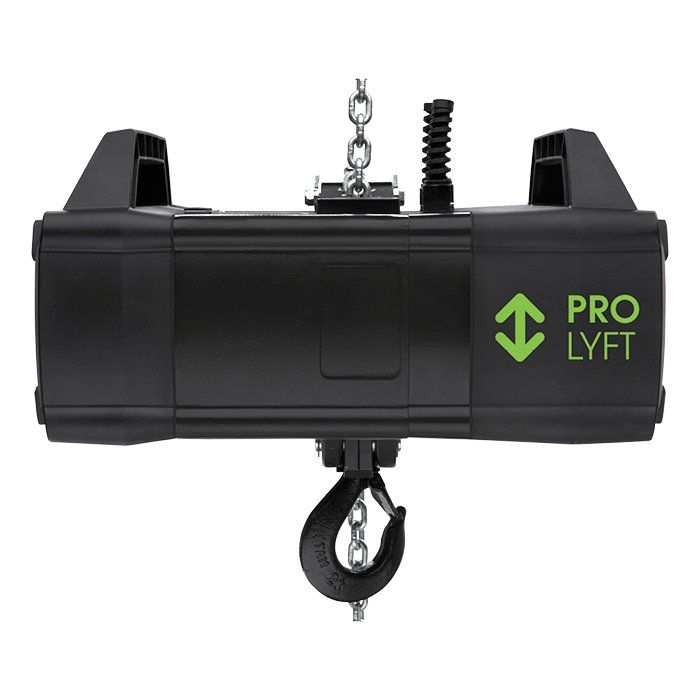

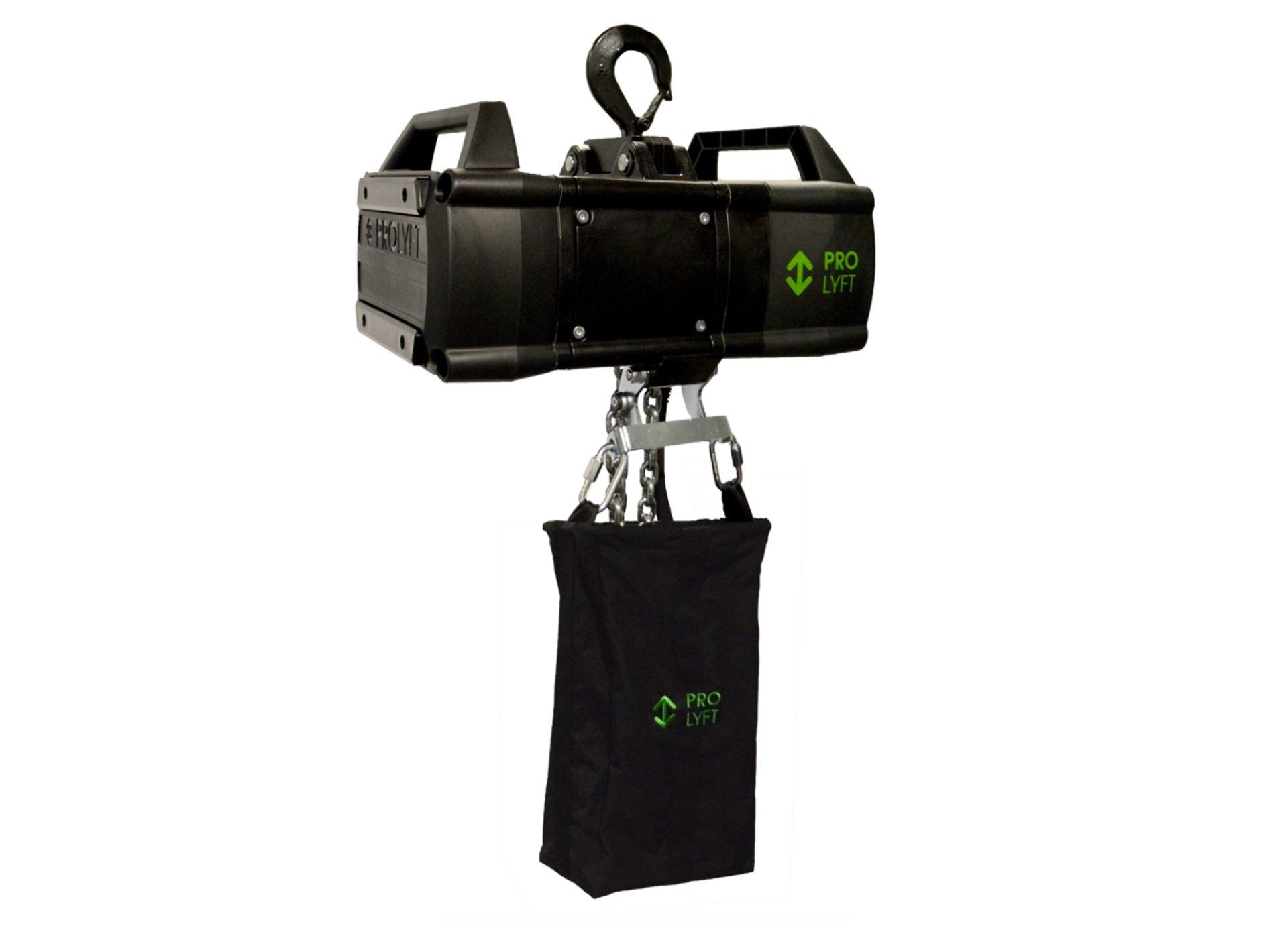

Load capacity - 1000kg
Lifting speed - 4m/min
Operating voltage - 230/400V 50Hz - 208/460V 60Hz
Protection Class - IP55
Motorpower at 50Hz - 0,66kW
Current consumption at full load - 1.46amp @ 400V - 2.53amp @ 230V
FEM Class - 1Am
FEM Duty factor - 50%
Starts per hour - 300
Noise Level - 60dBA
Load Wheel - 5 pocket
Load Chain EN 818-7 - 7.1x20.5mm
Falls of chain - 1
Weight of Chain - 1.1kg
Weight of Body - 47kg

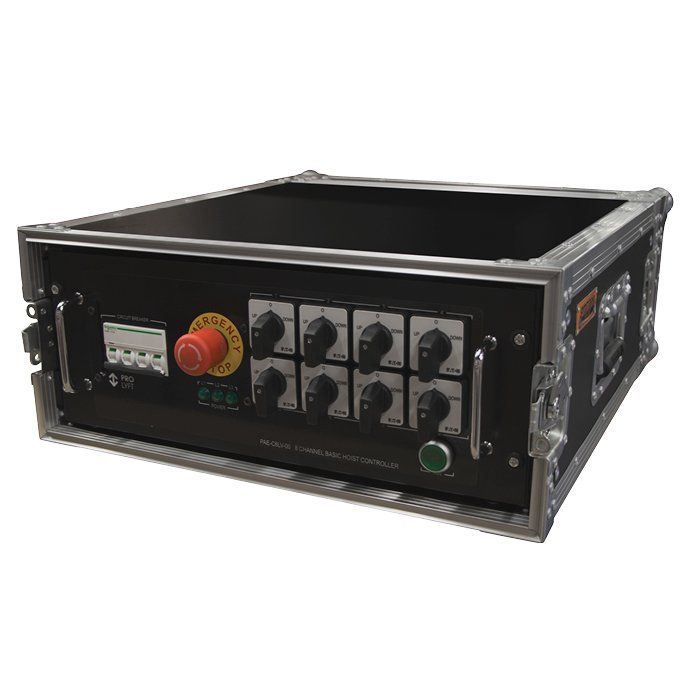

Type of Control - DC and LVC
Limit switches - single up/low limit-switches on DC and LVC
Type of Power Connector - CEE 16A-4p (red)
Type of LVC Connector - CEE 10A-4p (yellow)
Low Voltage Control Voltage - 24V

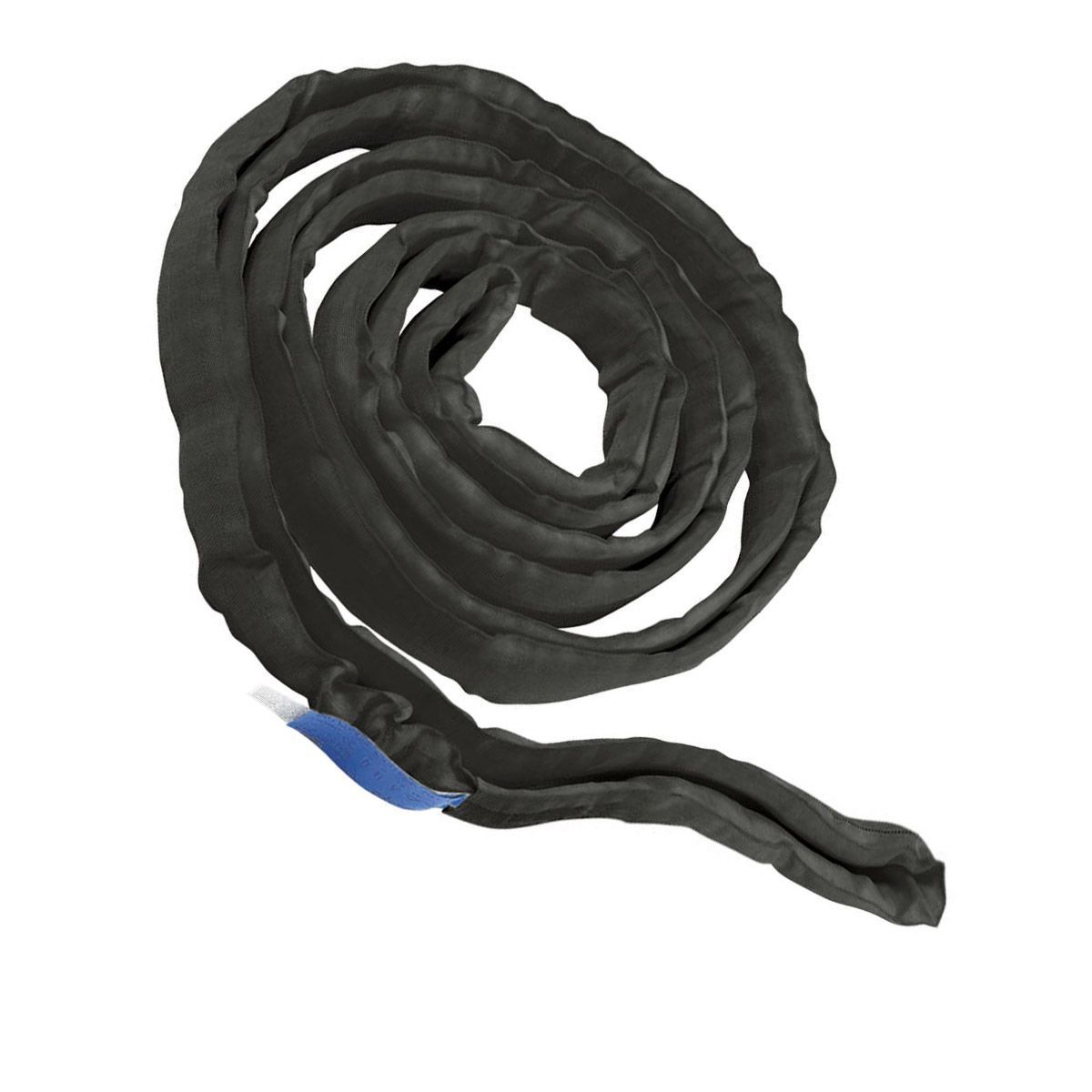

Polyester Round Sling

Colour - Black
Length - 2m
Hanging Capacity - 2000kg

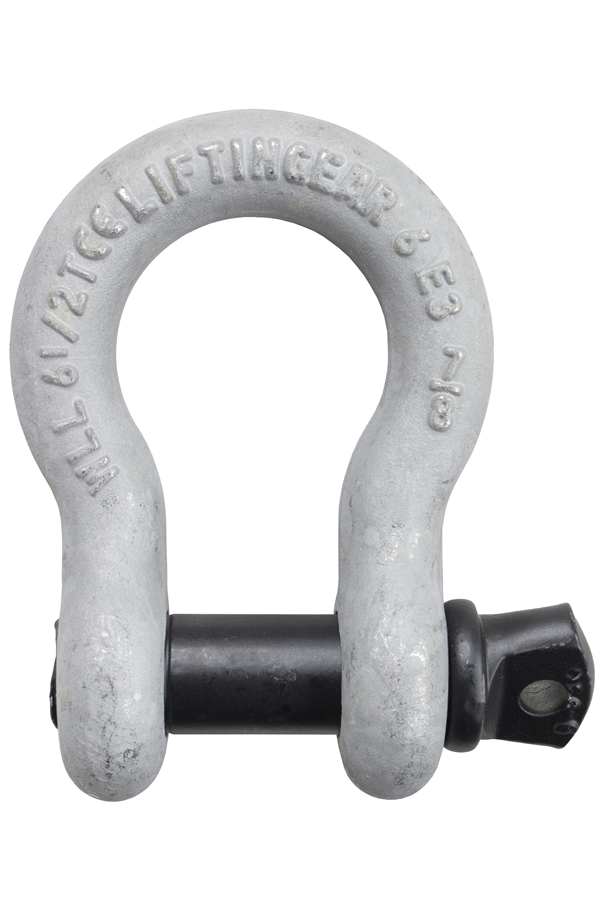

1 Ton Bow Shackle

Pin Diameter - 12mm
Internal Jaw Width - 17mm
Intenral Length - 36.5mm
Galvanised Finished
Weight - 0.15kg

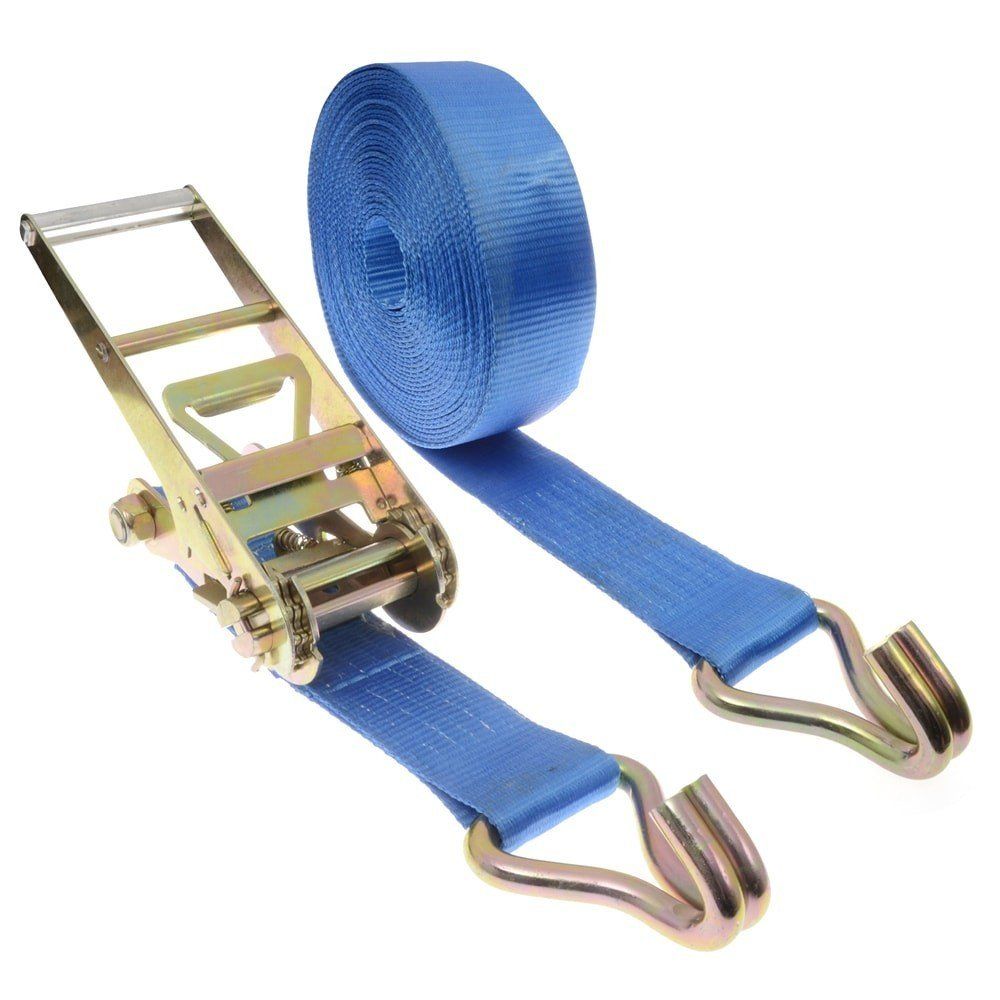

Ratchet Straps varying in load capacity and length

Small
800kg Mini Ratchet Straps
Length - Up to 5m

Large
5000kg Hooked-Ratchet Straps
Length - Up to 10m

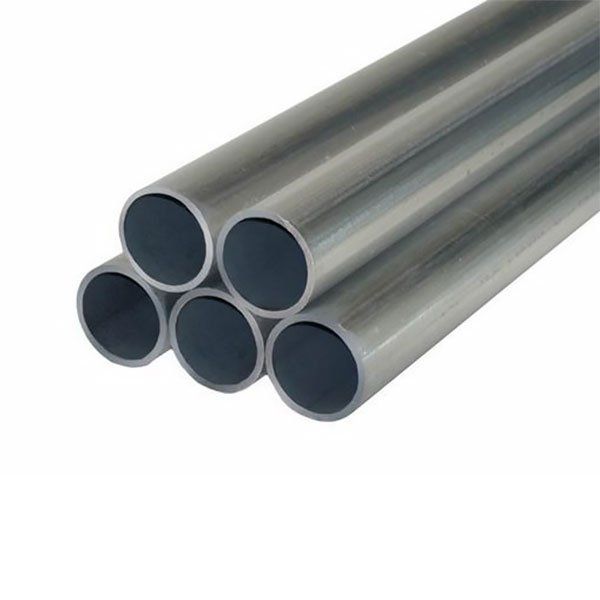

Aluminium Scaffold Poles up to 3.5m Lengths
Approximately 1.67kg/m
Tube Size - 48.3mm

RELATED ITEMS ===============

Pressed Steel Swivel Couplers
Suitable Tube - 48.3mm
Weight - 1.024kg
Material - Zinc Plated Steel

Various Scaffold Couplers
Suitable Tube - 48.3mm
Cross Piece
Corner Piece
Elbow Corner Piece
Angled Corner Piece
Right Angle Piece

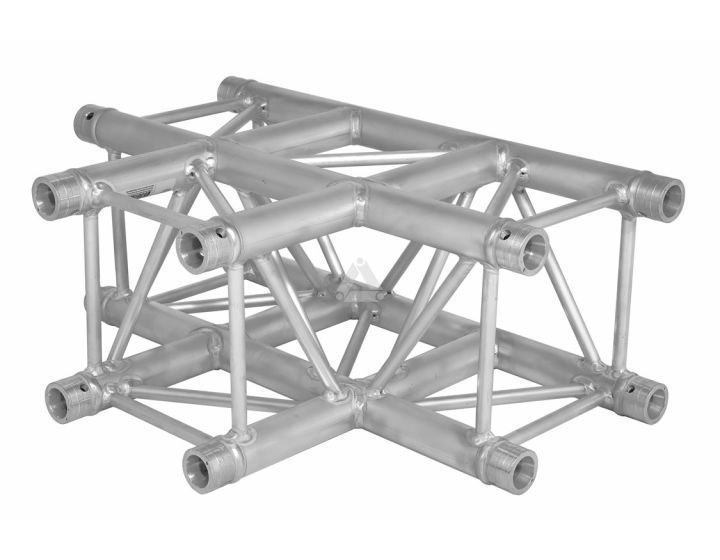

T-Section Piece
Angled T-Section Piece
Straight Piece

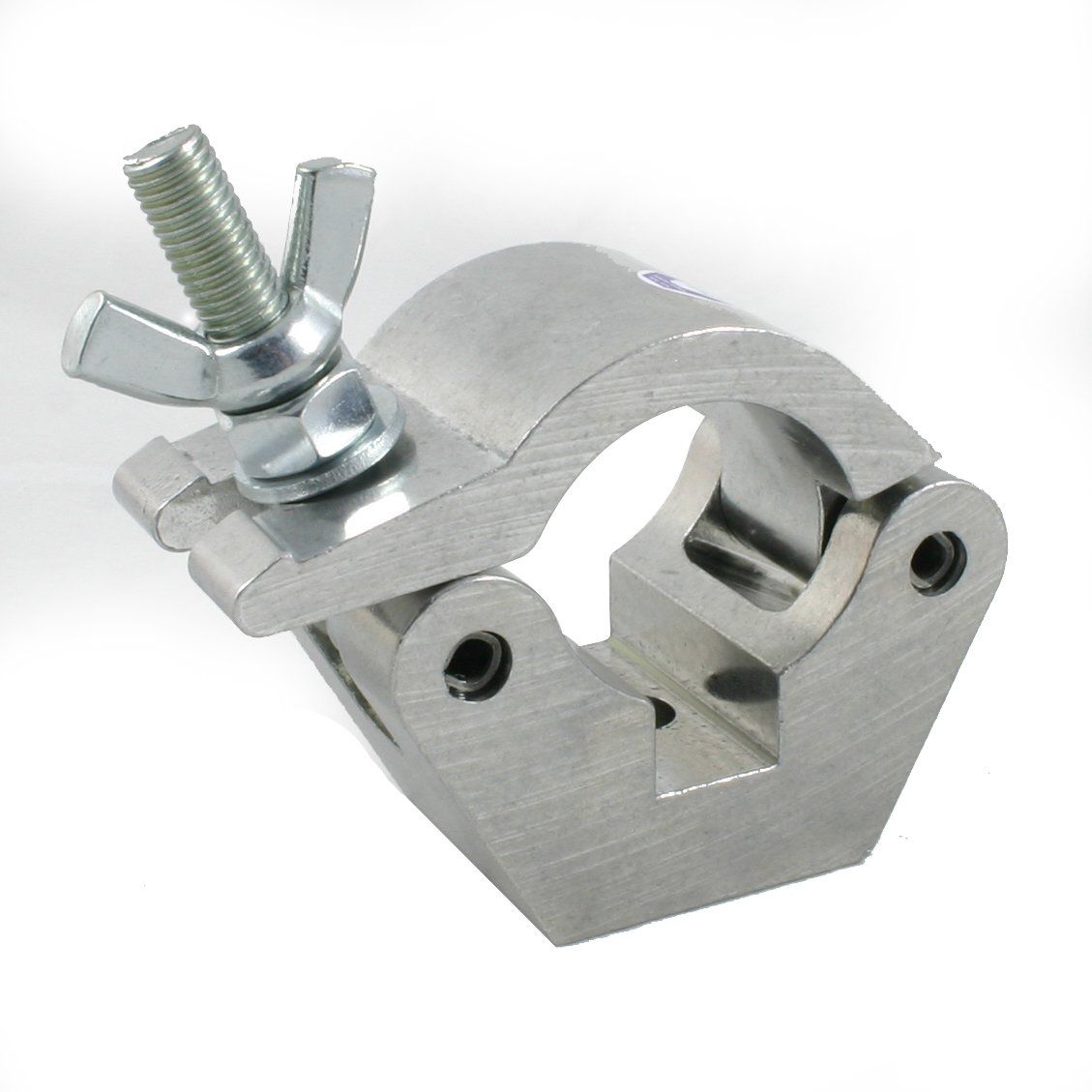

Aluminium Half Coupler Doughty Clamp

Suitable for 48-51mm pole diameters
M12 Bolt
Hook Clamp
SWL - 750kg
Weight - 0.63kg
Width - 50mm

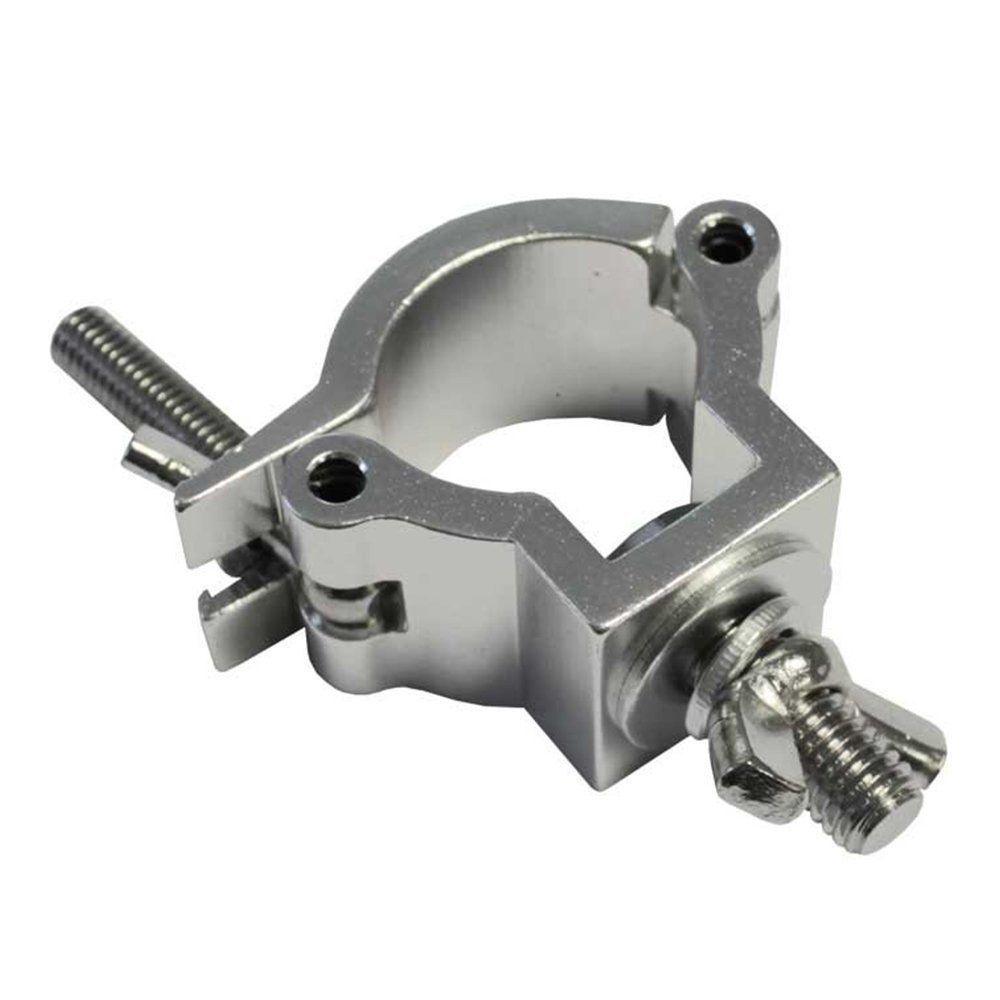

Global Truss Half Coupler

Suitable for 48-51mm pole diameters
Width - 30mm
Max Tensile Load - 100kg
Max Sheer Load - 30kg
Weight - 0.16kg
Clamp - M8 butterfly nut

============

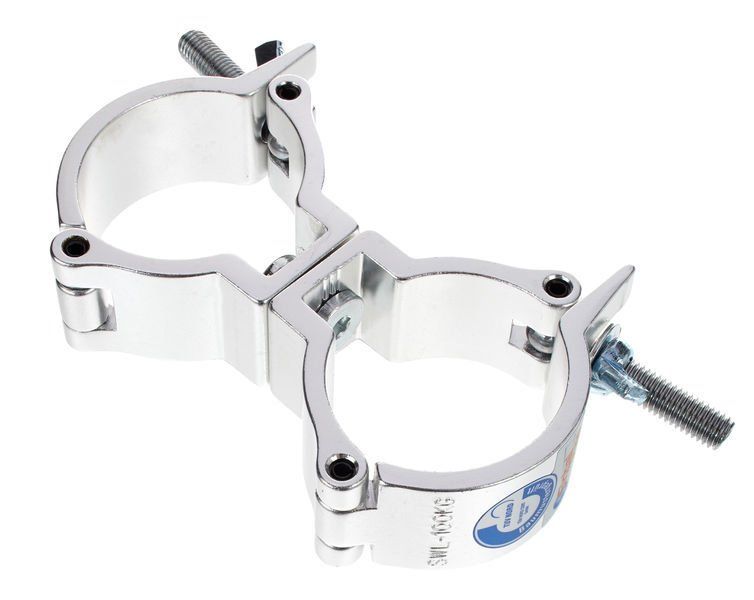

Global Truss Swivel Coupler

Double Coupler with small hinge.
Suitable for 48-51mm pole diameters
Width - 30mm
Max Tensile Load - 100kg
Max Sheer Load - 30kg
Weight - 0.33kg
Clamp - M8 butterfly nut

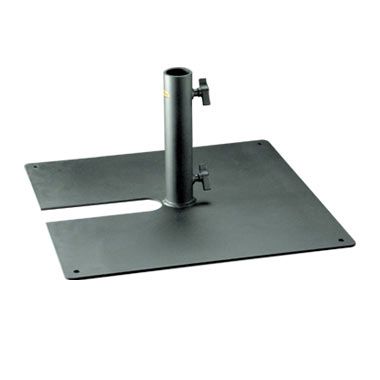

Steel Tank Trap

Plate Size - 600x600x5mm
Receiver length - 350mm
Receiver Size - 50mm (to suit 48.3mm scaffold)
Weight - 16.14kg

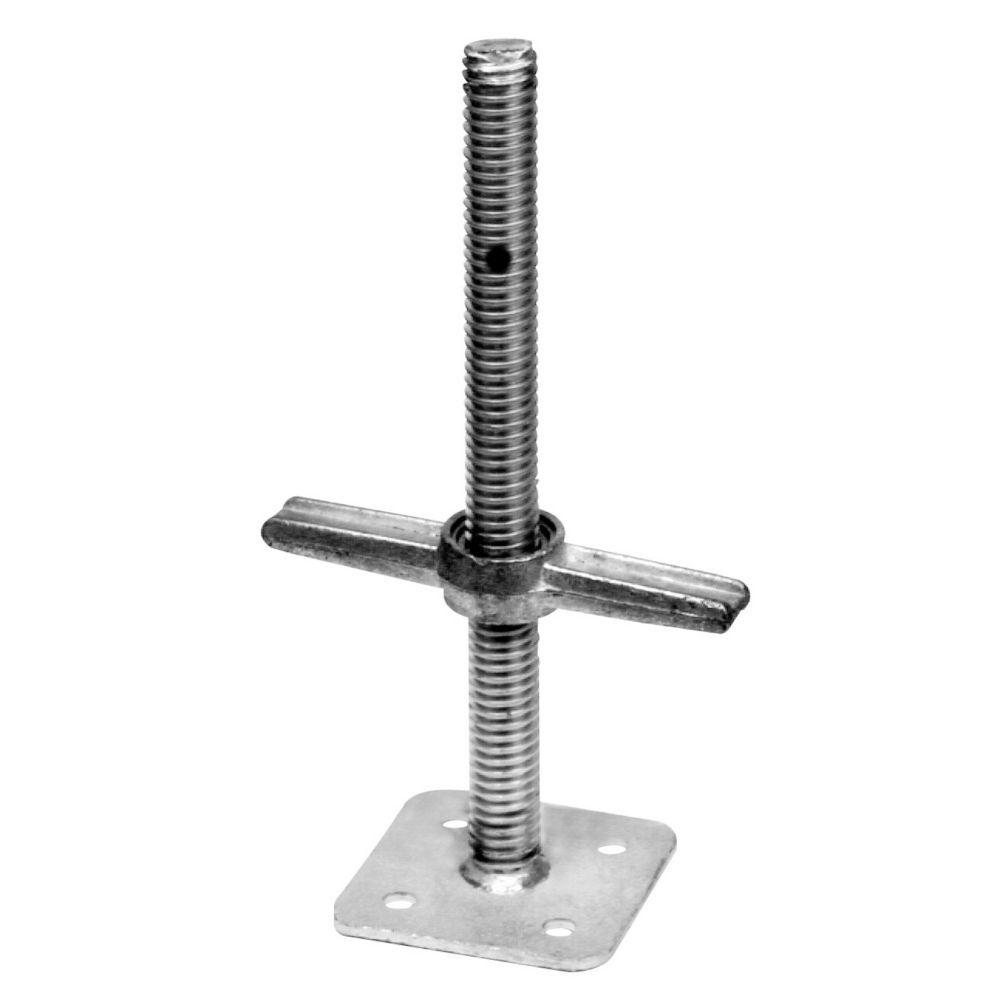

Scaffold Screw Jack

Load - 4 Ton
Height - 500mm
Weight - 3.2kg
Plate Size - 150x150x5mm
Diameter of Screw Approx 38mm

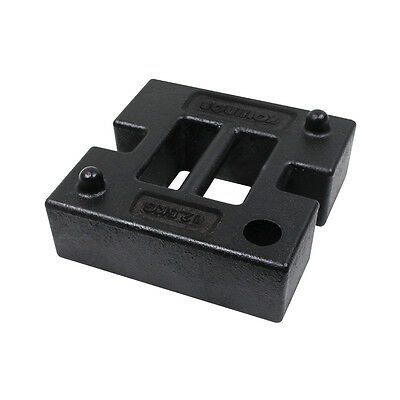

Flints Stage Weights with carrier handle for easier mobility and notches for safer stacking

Material - Cast Iron
Weight - 12.5kg
Size - 211x211x60mm
Max Load - 12 Tonnes

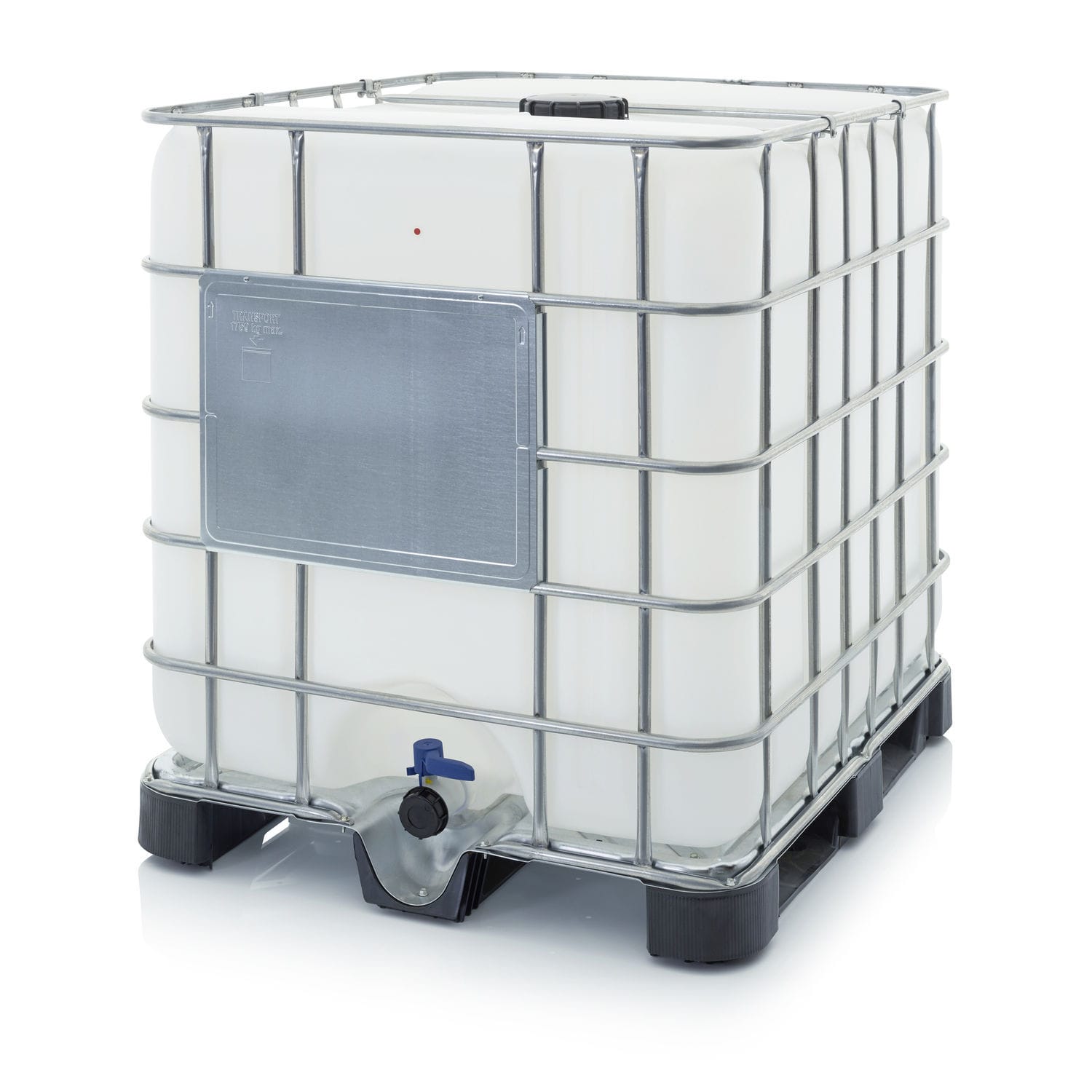

IBC Water Ballast Tank fitted with a protective and stackable metal cage and mounted to a pallet style base. Screw lid top for easy filling and tap at the base for easy draining.

1000 Litre Tank
Size - 1200x1000x1170mm (WxLxH)
Weight - 60.5kg

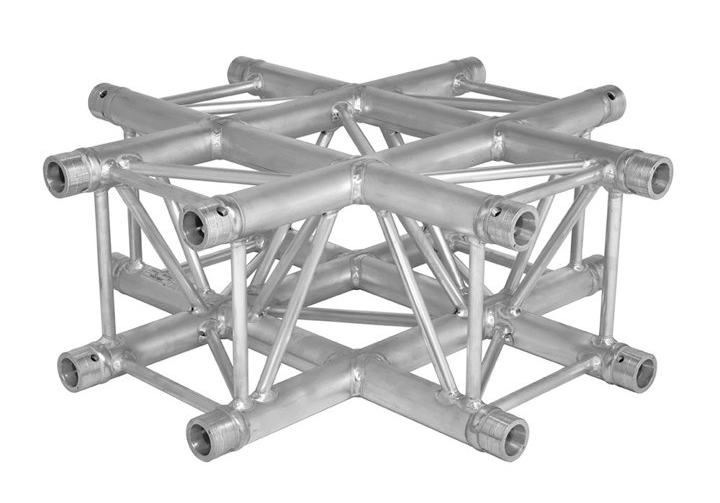

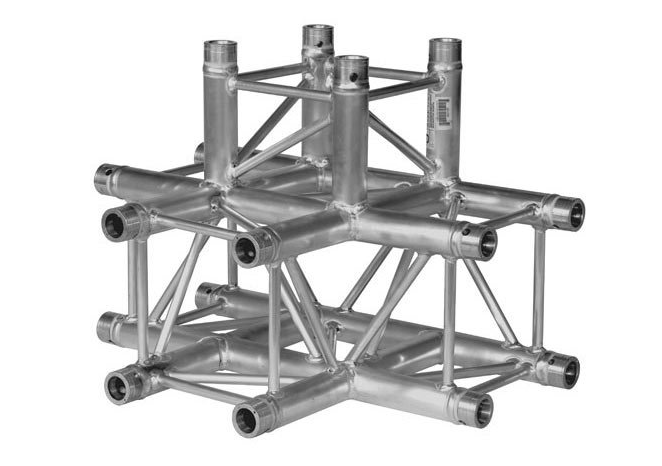

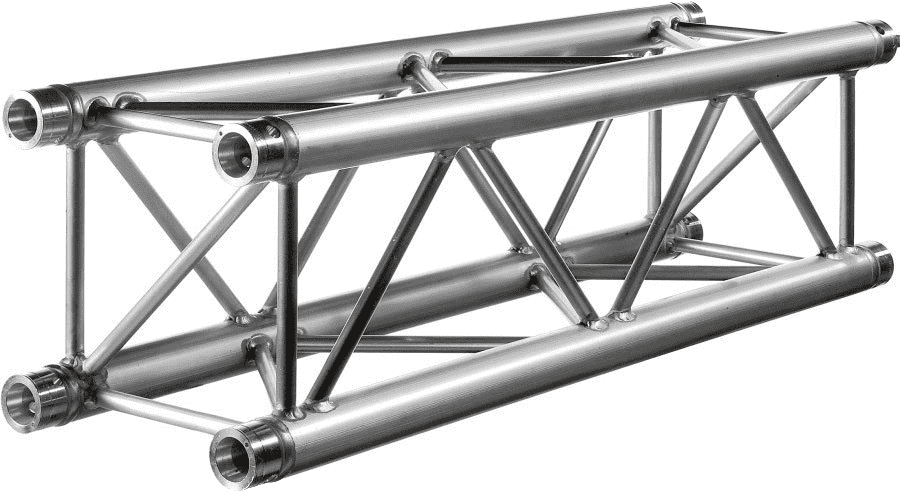

Height - 500mm
Width - 710mm
Depth - 710mm
Weight - 14kg Sample Link

Height - 500mm
Width - 500mm
Depth - 500mm
Weight - 7.54kg Sample Link

Height - 287mm
Width - 710mm
Depth - 710mm
Weight - 11kg Sample Link

Height - 500mm
Width - 710mm
Depth - 500mm
Weight - 9.17kg Sample Link

Height - 500mm
Width - 710mm
Depth - 710mm
Weight - 14kg Sample Link

Height - 287mm
Width - 500mm
Depth - 500mm
Weight - 5.6kg Sample Link

Height - 287mm
Width - 710mm
Depth - 500mm
Weight - 9.25kg Sample Link

QUAD - 287x287mm

Truss Base
Height - 5mm
Width - 330mm
Depth - 330mm

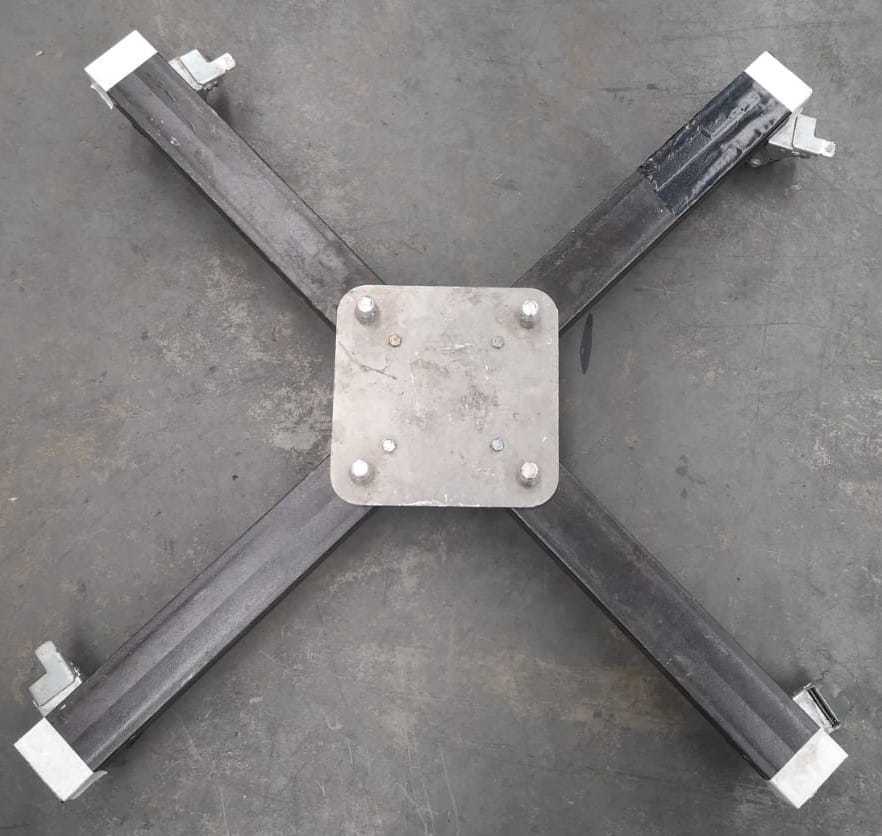

X Base
Height - 195mm
Width - 1500mm
Depth - 1500mm
Weight - 42kg Sample Link

The CCS6 conical coupler system offers a rigid and very strong connection between various truss types of the multi purpose series. The conical shape and tapered pins create an optimal connection and are easy to assemble or disassemble. Only a hammer is needed to connect your trusses, offering remarkable assembly speed compared to other connection types.

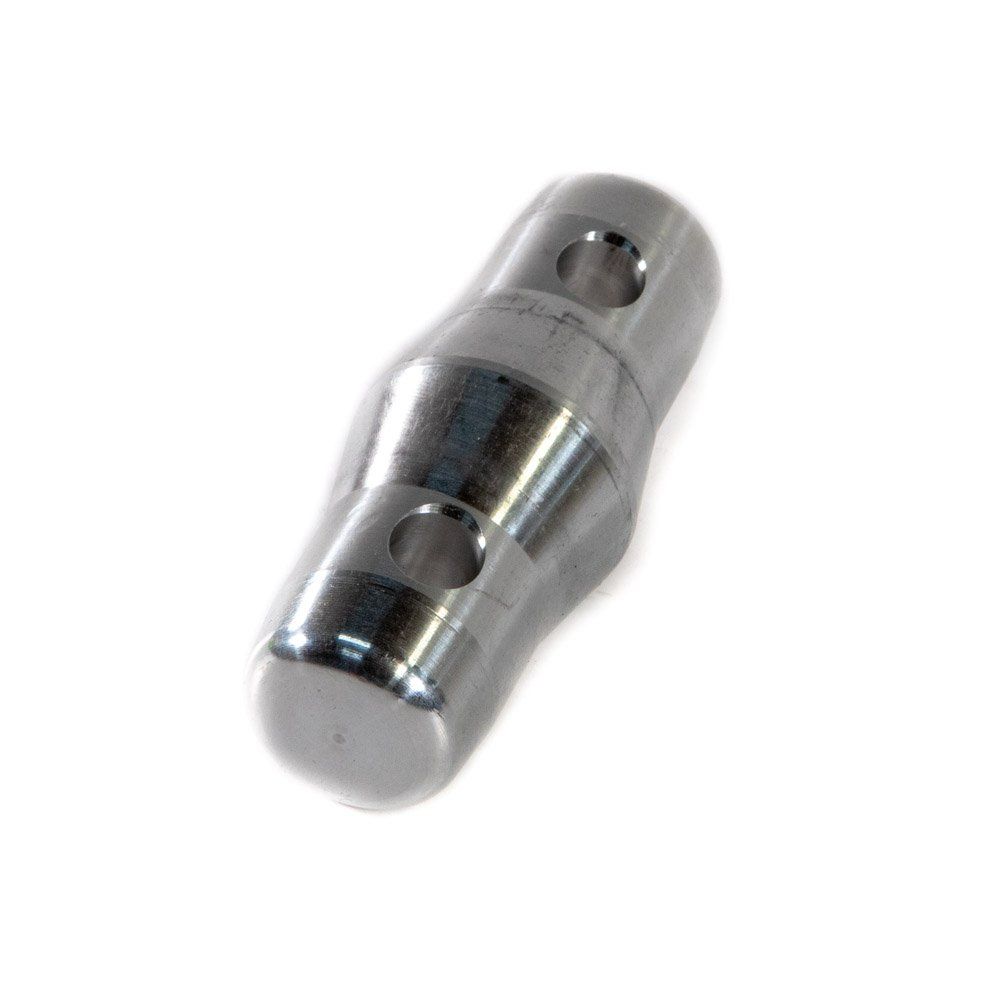

CCS6-600 Conical Coupler
Length - 88mm
Weight - 0.148kg Sample Link

Safety springs are used to stop the pins from falling out of the couplers, ultimately further securing the truss structure.

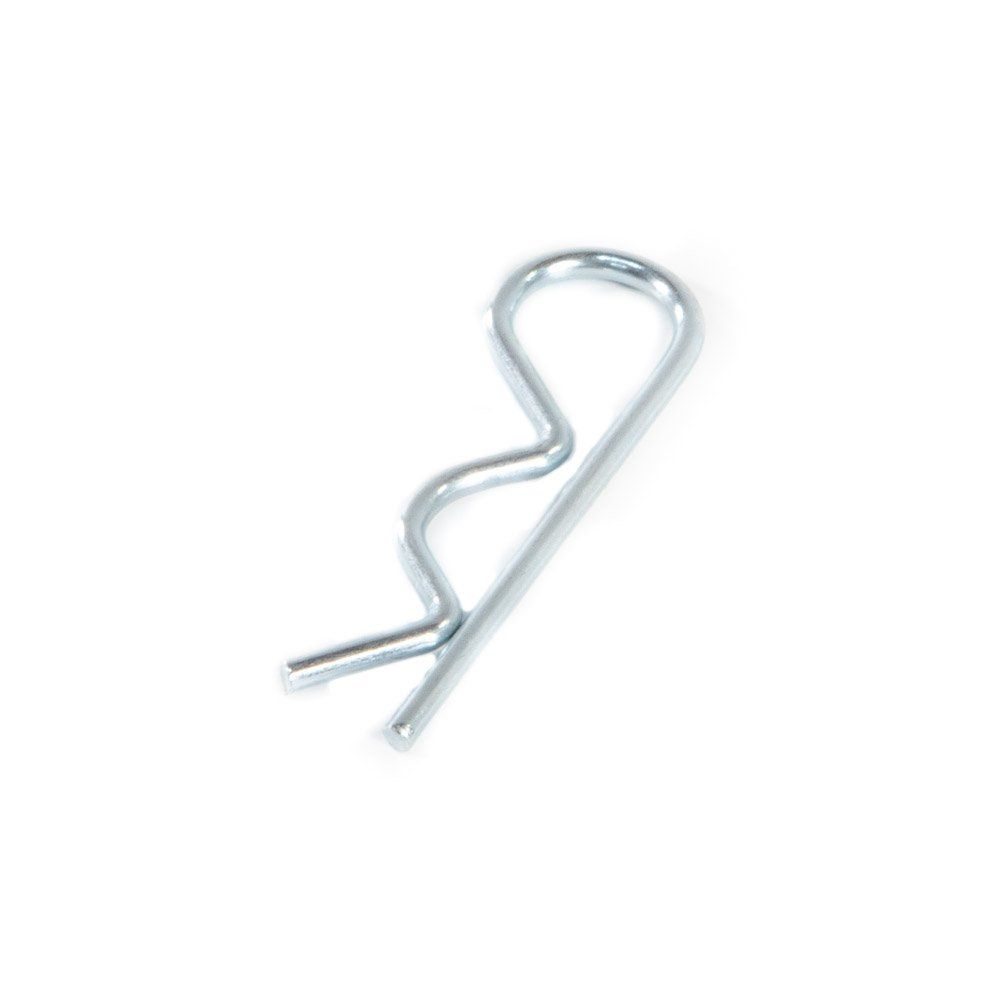

CCS6-605 Safety R-Spring
Length - 60mm
Weight - 0.003kg Sample Link

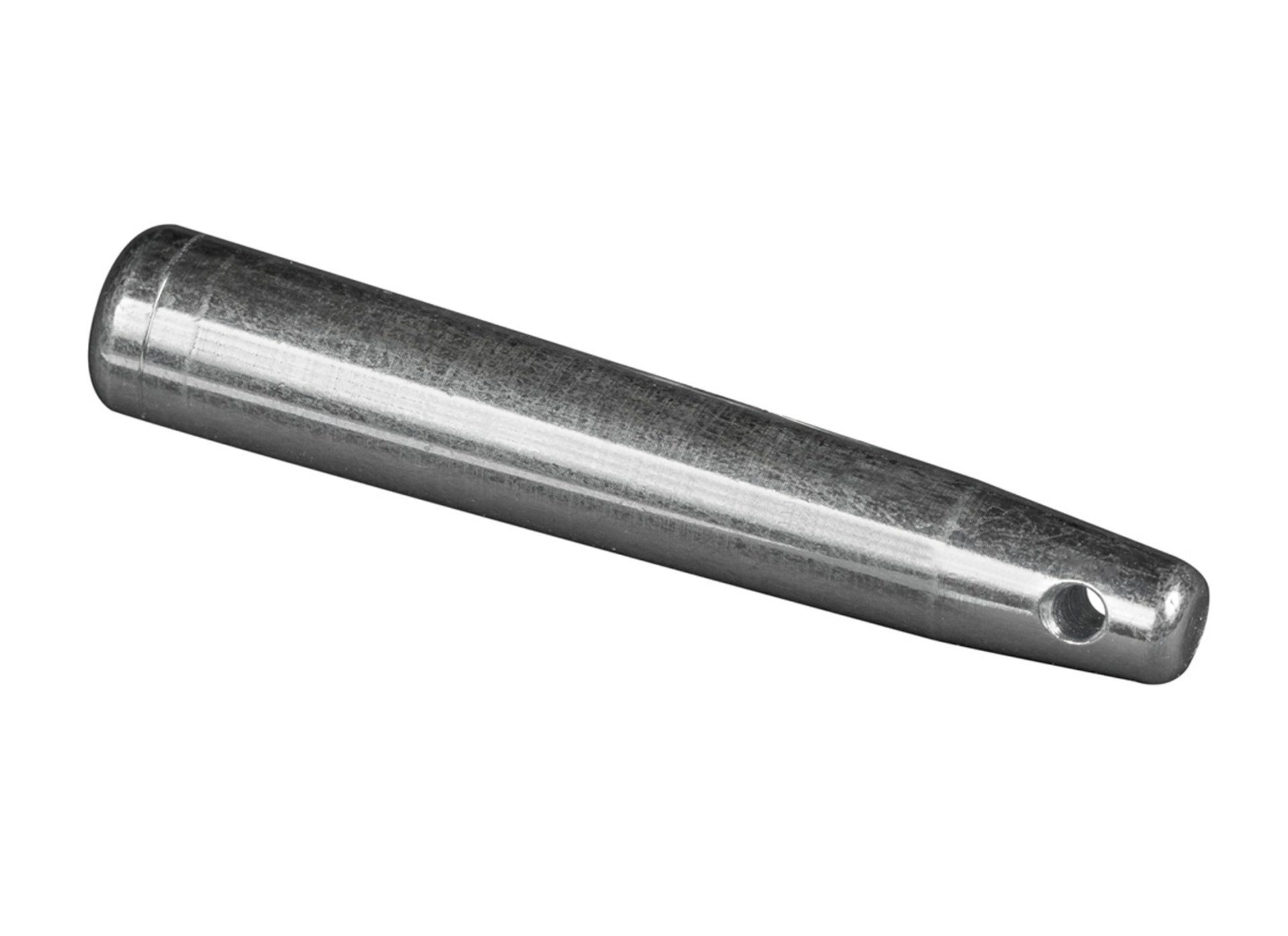

Spigot pins are used to secure the conical coupler into their position. Like the conical coupler, the spigot pins are also conical, tapered, in form. A light tap with a copper hammer should secure them.

CCS6-607 Spigot
Length - 65mm
Weight - 0.088kg Sample Link

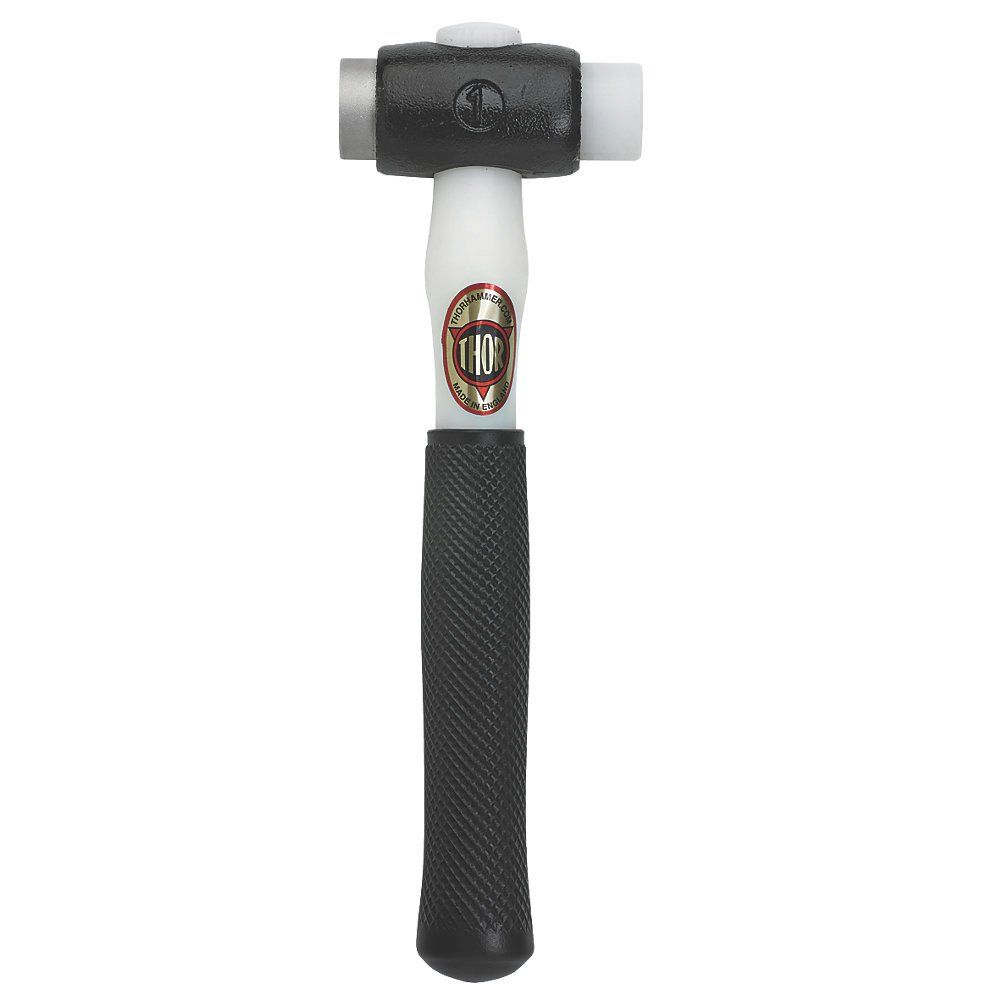

We use Thor Club Hammers with our truss as they offer hard and soft faces for multiple purposes to eliminate damage to the truss.

Weight - 0.66kg
Dual Faces
Hardwearing Handle Sample Link
